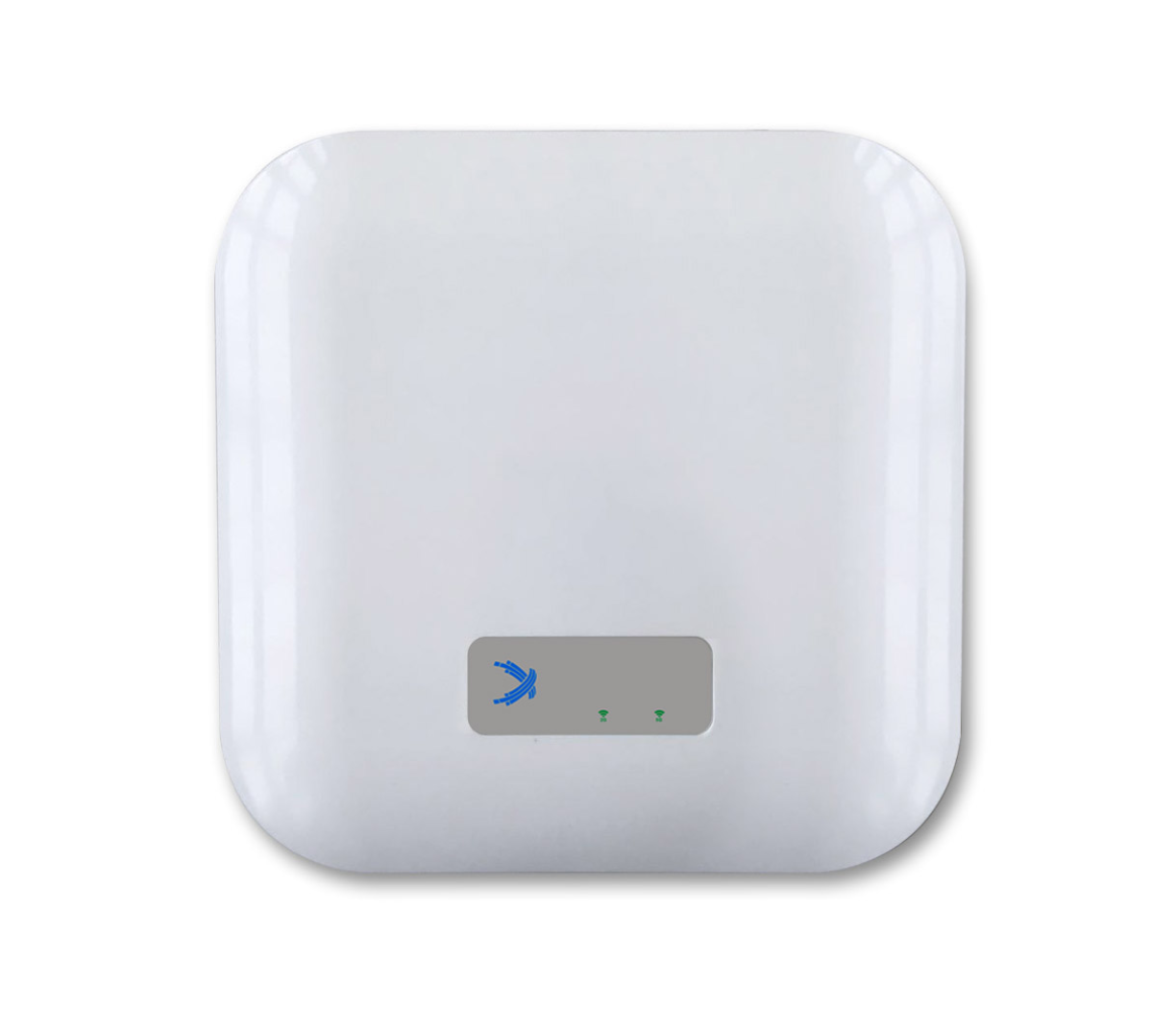

AX3000 Dual Band Gigabit AP_U350P-08
Product Details:
Specifications
| Chipset | CPU: TRI ductor VSPM350P Dual-core ARM cortex A9 RISC (1.1GHz) WIFI6:TR5220 |
| System Memory | Default DDR3 256Mbyte (Optional 512Mbyte) |
| SPI NAND Flash | Default 128Mbyte (Optional 256Mbyte~1Gbyte) |
| Wireless | MU-MIMO 802.11a/b/g/n/ac/ax WiFi6 2.4GHz 2T2R 576Mbps, B mode@22dBm (Max) 5.8GHz 2T2R 2.4Gbps, A mode@21.5dBm (Max) |
| Wired Interface | 1* WAN Giga Ethernet RJ45 Port with POE PD（Support 802.3at & af standard) 1* LAN Giga Ethernet RJ45 Port |
| Reset Button | 1x Factory Restore Button (GPIO) |
| DC Power | 1x DC Jack Connector (Default 12V@1A) |
| Power Consumption | 10 W(Max) |
| Software | Linux |
| Environmental | Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95% |
| case | Material: Plastic Dimensions: 168x168x40mm (±2mm) |

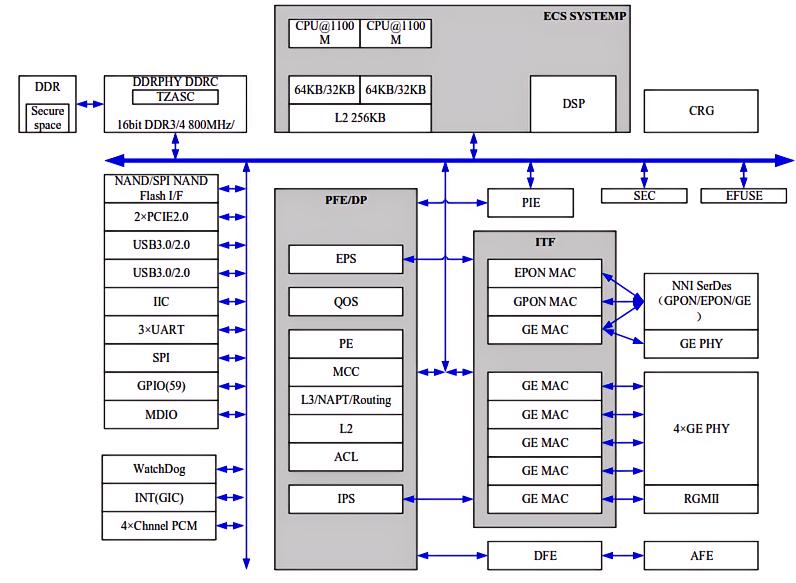

VSPM350P Block Diagram

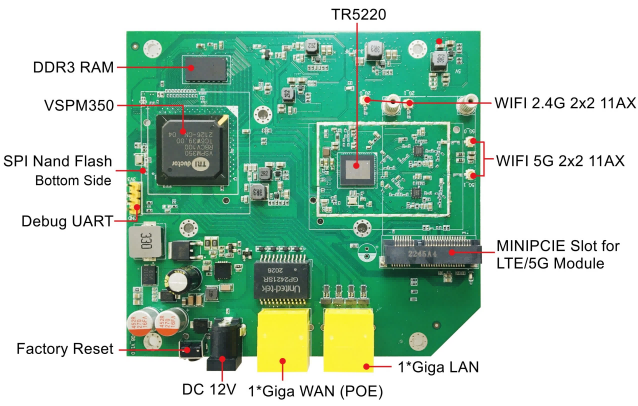

Board Block Diagram
Customization Options
Cnebay have engaged in providing global customers with professional ODM/OEM service of customized stable and
cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,
Software and Package as below customization options for this product. Contact us at cnebaysales@gmail.com for more detailed info.
| Name | Customization Comments | Cnebay Customization |
| Memory | Change to 512Mbyte | Supported |
| SPI NAND Flash | Change to 256Mbyte~1Gbyte | Supported |
| case | Select the different case material for your application | Supported |
Ordering Information
| Models | Comments |
| U350P-08 | 128Mbyte SPI NAND Flash and 256Mbyte DDR3 RAM |

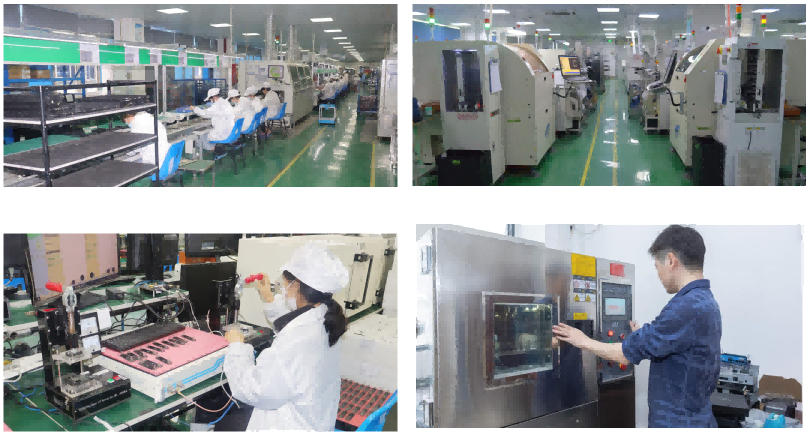

we are Manufacturer & Network Solution Supplier
